제품 상세 정보:
|
| 재료: | cr 강, GCr15SiMn,100CrSiMn6-4,SUJ3 | 등급: | G60 또는 G100 |
|---|---|---|---|
| 견고성: | HRC59-65 | 서피스: | 래핑, 닦은, 섬광, 어떤 결함 |
| 애플리케이션: | 볼 베어링, 자전거, 자동차, 기계류 | 특징: | 도로 용량을 압도하는고 정밀도, 높은 것 견고성, 좋은 마모 방지 |
| 표준: | GB/T308, ISO, ANSI / ABMA, DIN 5401, JIS 비 1501 Etc | 서비스: | 검사증명서, 고객의 요구조건하고 인사하세요 |
| 무료샘플: | 검사를 위한 샘플을 공급하세요 | ||
| 강조하다: | 69.85mm High Carbon Steel Balls,G100 High Carbon Steel Balls,GCr15SiMn High Carbon Steel Balls |
||

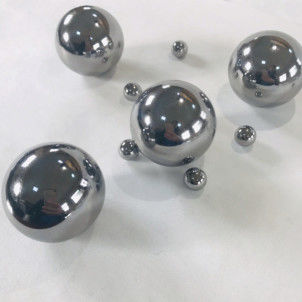

69.85mm(2.75 inch) high carbon steel balls for High Precision Ball Bearings
Description
Chromium (GCr15SiMn, 100CrSiMn6-4, SUJ3) steel ball is a high-carbon chromium bearing steel with low alloy content. It has good superior performance and excellent wear resistance, deformation resistance, high load carrying capacity and high contact fatigue performance after quenching and tempering.
The chrome ball is made of the highest quality chrome alloy steel and has been quenched to achieve maximum strength and service life. Ideal applications for chrome balls include rolling media, ball bearings, wind turbine bearings, and linear motion components. The most widely used in various industries.
Although these chrome steel balls have good anti-rust properties, it is recommended to wipe them clean with a dry cloth and apply a layer of oil after use to make them have better anti-rust properties and extend their service life.
Our products are well received and satisfied by our customers. Most importantly, we can customize our products to meet the various needs of customers. According to user requirements, steel balls can be produced according to national standard GB/T, international standard ISO 3290, American standard ANSI/ABMA, German standard DIN, Japanese standard JIS B1501, etc.
Production Process as follows
Grade and Precision
| Grade | Hardness | Material | Ball Diameter |
| G100 | HRc 59-65 | GCr15SiMn, 100CrSiMn6-4, SUJ3 | 69.85mm (2.75") |
