슬루잉 링 베어링을 위한 높은 cr 강 볼 41.275 밀리미터 1.625 " G40

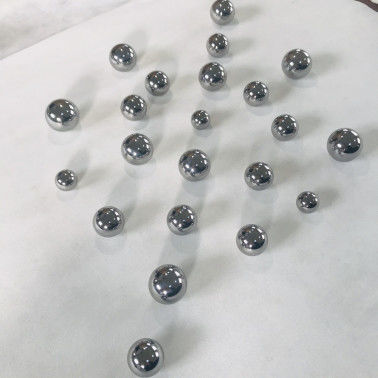

41.275mm(1.625"), G40, High Quality Chrome Steel Balls for slewing ring bearings

Introduction

High carbon chromium bearing steel refers to the high carbon alloy steel with 1.40-1.65% of chromium.It is characterized by uniform and stable microstructure after heat treatment, good wear resistance, high stress fatigue strength, good dimensional stability and good wear resistance.

This type of bearing can meet the working requirements under general working conditions. The brand numbers of ordinary high-carbon chromium bearing steel are GCr15 and GCr15SiMn.The performance of these two bearing steels is basically the same. But the hardenability of GCr15SiMn is better than GCr15, so GCr15SiMn is used for relatively large bearing parts. Because GCr15SiMn has high crack sensitivity and low impact resistance, it cannot fully meet the requirements for thick-walled bearings and mine bearings. Therefore, the railway department does not allow the use of CGr15SiMn on passenger car bearings. It is also limited to thick-wall rolling mills and mining machinery under large compact loads.

The finest quality chrome steel produced in accordance with the highest industry standards. These high precision ball bearings are hot forged from bar stock. Modern furnaces with precisely controlled atmospheres and temperatures are used for heat treating to assure uniform hardness and proper microstructure for each Stainless steel ball. Throughout the manufacturing process, statistical process control assures tolerance accuracy, fine surface finish and consistent high quality.

Surface Qualities

Surface Roughness: Surface roughness consists of all those irregularities which form surface relief and which are conventionally defined within the area where deviations of form and waviness are eliminated.

Waviness: The more widely spaced circumferential component of surface texture.

Hardness

Our modern heat treating facilities, complete with controlled atmosphere and temperature, this enables us to maintain the Rockwell hardness within the standard range during any production process and reach any specific hardness specified by the customer. AISI E52100 Chrome Steel Balls are made with a through hardness of HRC 60 to 67, depending on requirements.

Material Characteristics

Found primarily in ball bearing designs and a variety of demanding industrial applications. A vacuum-degassed AISI E52100 chrome steel is used to obtain a superior ball with a fine surface finish, through-hardness and high load capacity. Also available in consumable electrode vacuum melt material.

We are equipped with the most advanced production machines and testing instruments. With our sophisticated equipments, we can perform all the following processes on the steel ball: roundness testing, vibration testing, random value detection, surface smoothness detection, Rockwell hardness testing, etc.

In 2006 it started the business of wind energy steel ball with Korea company. Our balls are mainly for wind energy industry.

chrome steel and other metal balls are manufactured using the following processe

Our Advantages


1. Professional manufacturer of steel balls more than 15 years.
2. The leading domestic facility which can supply high precision steel balls with complete specifications.
3. Technology: low vibration, low noise, high precision and durability..
4. Strict quality control system,100% inspection.

5. Our quality is higher at the same price, our price is lower at the same quality.
6. Sufficient inventory, on-time delivery.
7. All inquiries and messages will be replied within 24 hours.
8. Small quantity of free samples could be provided.

Grade and Precision

Material Analysis
