제품 상세 정보:
|
| 이름: | 볼을 부수는 강철 | 재료: | cr 강, 고탄소강, GCr15, SUJ2 |
|---|---|---|---|
| 등급: | G28 | 견고성: | HRc67에 대한 HRc61 |
| 서피스: | 높이 닦은 밝은 래핑 | 용법: | 볼 베어링, 기계적인 장비 |
| 표준: | DIN, ASTM, AISI, JIS, AFN | 특징: | 매끄러운, 마모방지, 부식 저항성 |
| 하이 라이트: | SUJ2 High Chrome Steel Ball,34.4mm High Chrome Steel Ball,35.1mm Steel Forged Grinding Balls |
||

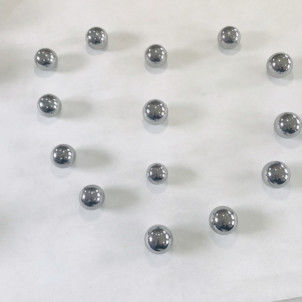

34.80mm(1.370078"), 34.10mm,34.2mm,34.4mm to 35.1mm, High Chrome Steel Ball For Bearing, SUJ2
Introduction
GCr15 steel has low alloy content and good performance. It is currently the most widely used bearing steel. After quenching and low temperature tempering, it will have higher hardness and uniform good structural properties.
This type of steel can meet the processing requirements under general working conditions. The brand numbers of ordinary high-carbon chromium bearing steel are GCr15 and GCr15SiMn. The performance of these two types of bearings is basically the same. But the hardenability of GCr15SiMn is better than GCr15, so GCr15SiMn is used for relatively large bearing parts. Because GCr15SiMn has high crack sensitivity and low impact resistance, it cannot fully meet the requirements for thick-walled bearings and mine bearings. Therefore, the railway department does not allow the use of CGr15SiMn on passenger car bearings. It is also limited to thick-wall rolling mills and mining machinery under large compact loads.
Steel ball is a fundamental part of industry. From ball pen to airplane, steel ball plays a very important role in various industries. To divide it in material, it could be divided into carbon steel ball, bearing steel ball, stainless steel ball etc. Carbon steel ball has the property of low price and high hardness. Therefore, it is widely used in bicycle, bearing, pulley, sliding rail, universal ball, etc. Bearing steel ball has the property of excellent surface finish, high hardness, high load carrying capacity, excellent wear and deformation resistance etc. It is mainly used in precision ball bearing. Meanwhile, it could also be used in bicycle, motorcycle, automobile, sliding rail, home appliance, electronic industry, chemical industry etc.
The surface of our chrome steel balls is extremely precise and smooth, ensuring that you will not find any defects such as flatness, dents, soft spots and cuts.
We mainly produce chrome steel with sizes ranging from 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn. Our balls are mainly used in the wind energy industry.
High Precision bearing (chrome) steel ball
| Application |
Suitable for many industrial applications, such as ball bearings, household appliances, automotive industry, mechanical equipments, mining, metallurgy, wind power like large rotary bearings (rotary disk bearings), wind power bearings such as yaw bearings, variable blade bearings, etc., |
| Raw Material | Gcr15,Gcr15SiMn,100Cr6 etc. |
| Size Range | Ø 15.875 mm - Ø 50 mm (GCr15 ) |
| Ø 50 mm - Ø 82.55 mm (GCr15SiMn ) | |
| Grade | G10-200 (G 10, G 16, G 20, G 24, G 28, G 40, G 60, G 100, G 200) |
| Hardness | 58-67HRC |
| Feature | (a)Mainly used in bearings |
| (b)Good hardness | |
| (c)Good resistance to deformation with excellent wear resistance | |
| (d)Low corrosion | |
| Magnetic | Yes |
| Packing |
Dry or oiled. Standard export packing: 10kg or 20kg per carton,1 ton per pallet or as per customer's requirement. Refer to related pictures. |
| Time of delivery | The steel balls are in stock can be shipped around one week. otherwise,it takes about 20-30 days. |
| 20~45 days according to the order quantity. |
