제품 상세 정보:
|
| 재료: | GCr15, 100Cr6, 높은 크롬, 고탄소 | 정확성: | G40 |
|---|---|---|---|
| 견고성: | HRc67에 대한 HRc61 | 애플리케이션: | 돌격 볼베어링 |
| 서피스: | 연마, 닦은, 어떤 결함 | 특징: | 대용량과 미세면 마무리, 높은 스트레스 피로 강도 |
| 샘플: | 무료로 공급될 수 있습니다 | 패키지: | 플라스틱 백 + 카드보드 박스 + 목재 파렛트 |
| 하이 라이트: | 44.48 밀리미터 정확성 강철 볼,베어링을 위한 44.48 밀리미터 강철 볼,지탱하기 위한 HRc61 강철 볼 |
||

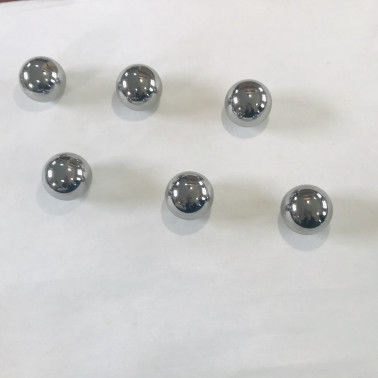

44.48mm(1.751181"), customized size, high accuracy steel balls for bearing
Introduction
GCr15 steel is a kind of high carbon chromium bearing steel with low alloy content, have good performance and most widely used in various industires. it has high and uniform hardness, good wear resistance and high contact fatigue performance after quenching and tempering. After spheroidizing annealing, it has good workability, but it is sensitive to the formation of white spots.
Mainly used to manufacture steel balls, rollers and bushings on drive shafts of internal combustion engines, electric locomotives, machine tools, tractors, rolling equipment, drilling machines, railway vehicles and mining machinery.
After precision washing, oiling & before packing sample balls from the batch are sent for final inspect to check for surface roughness, roundness, waviness, lot size variation and hardness, according to specified control plans and inspection procedures. Inspection report is prepared for the customer once all requirements are met.
We mainly produce chrome steel with sizes ranging from 7.9375mm to 82.55mm. The main material is high chromium GCR15 or GCR15SiMn.
Most importantly, we can customize products to meet the various needs of customers.
Advantage
Why Choose Us:
1. Special types of balls supplied.
2. Small MOQ with competitive price.
3. Fast delivery based on quality guaranteed.
4. Small quantity of free samples could be provided
5. Normal have in stock within one week can be shipped.
Product Details
| Product Name | High Precision Chrome Steel Balls |
| Size range | Ø 44.35 mm – Ø 44.57 mm(GCr15/SUJ2/100Cr6/E52100) |
| Quality grades | G40 |
| Hardness | HRc61-67 |
| Application | The High Quality Chrome Steel Balls are mainly applied in Deep Groove Ball Bearing, Angular Contact Ball Bearings, Thrust Ball Bearings, Wheel Hub Bearings, Linear Bearings,wind turbine bearing, slewing ring bearing and also the Bearing. |
| Special properties | 1. High accuracy |
| 2. no defects of surface | |
| 3. high hardness | |
| 4. Can be produced according customer requirement | |
| 5. Can provide small and big size standard and non-standard steel ball. | |
| Service | can provide free samples for checked, quantity and quality assured |
| Lead time | Normal have in stock within one week can be shipped. |
| It will take about 20 to 30 days can be shipped out of stock or depending on the order q'ty. | |
| Package | Plastic bag+ cardon box+ wooden pallet. or according to buyers' requirement |
| Payment terms | A:100% |
| B: 30% T/T in advance .70% against copy of B/L | |
| C: 30% T/T in advance .70% against L/C at sight | |
| D: Western union |
